Product Summary
The AD8310 is a complete, dc?440 MHz demodulating logarithmic amplifier (log amp) with a very fast voltage mode output, capable of driving up to 25 mA into a grounded load in under 15 ns. It uses the progressive compression (successive detection) technique to provide a dynamic range of up to 95 dB to ±3 dB law conformance or 90 dB to a ±1 dB error bound up to 100 MHz. It is extremely stable and easy to use, requiring no significant external components. A single-supply voltage of 2.7 V to 5.5 V at 8 mA is needed, corresponding to a power consumption of only 24 mW at 3 V. A fast-acting CMOS-compatible enable pin is provided.
Parametrics
AD8310ARMZ Datasheet (PDF) - Analog Devices - Fast, Voltage-Out DC-440 MHz, 95 dB Logarithmic Amplifier |
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

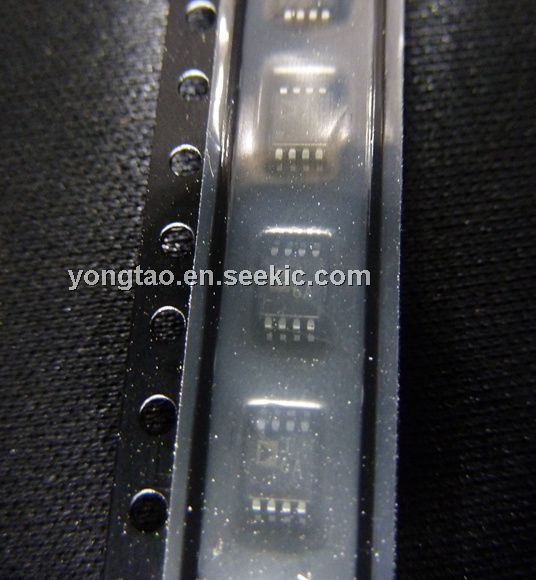

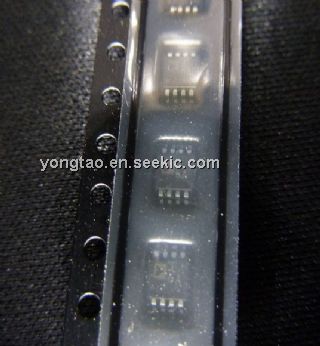

 AD8310ARMZ |
|
IC LOGARITHMIC AMP 95DB 8-MSOP |
Data Sheet |
|
|
||||||||||||||||||||
|
AD8310ARMZ-REEL7 |
|
IC AMP LOGARITHMIC 8MSOP |
Data Sheet |
|
|
||||||||||||||||||||
