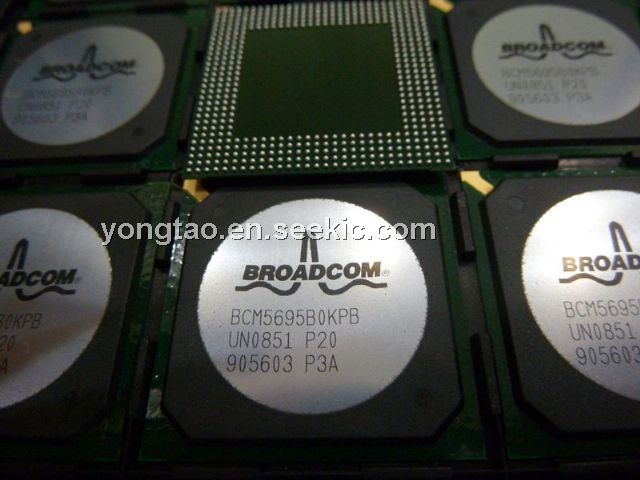

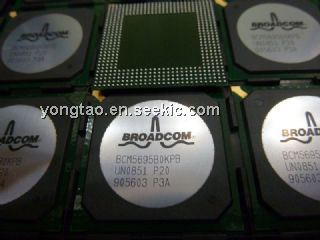

Product Summary

Facilitates seamless integration of voice, video, and data traffic
through low-latency and advanced QoS

Parametrics

Enables lower system design cost and board space utilization
through superior integration and compact form factor
? Offers quicker time-to-market and software reuse through
backward compatibility with Broadcom switch software API

Features

? 12 10/100/1000-Mbps Ethernet ports with copper or fibre
connectivity
? HiGig+? stacking port that runs at 10-Gbps or 12-Gbps speeds
?
Integrated high-performance SerDes with XAUI? interface on
the HiGig+ port and an SGMII interface on the Gigabit Ethernet
(GbE) ports
? Scalable up to 128 BCM5695 devices in a single configuration
? All address tables and buffer memory fully integrated on-chip
? Support for port trunking and mirroring across stacked links
? Support for jumbo frames of up to 9 KB in size
? Advanced full-duplex end-to-end flow and congestion control with
head-of-line blocking prevention
? ContentAware? packet filtering and classification per-port
? Wirespeed operation
? Support for 802.1p, TOS/DiffServ, policing, shaping, marking, and
remarking
? Rate control of broadcast, unknown multicast and unicast packets
? Eight queues per port
? Support for double 802.1q VLAN tagging and VLAN translation
? Hardware-based IP multicast routing and forwarding
? Support for replication
? Equal and weighted cost multipath routing for load balancing
? Advanced diagnostic features including JTAG boundary scan and
BIST functionality
? Low power consumption of 4.65W in a 480-pin PBGA package
? Pin-to-pin compatible with the BCM5690

Diagrams

Modular chassis-based Gigabit and 10-GbE switch solutions
for the core of enterprise networks
? Scalable, stackable GbE switch solutions for distribution and
wiring closet of enterprise networks
?
