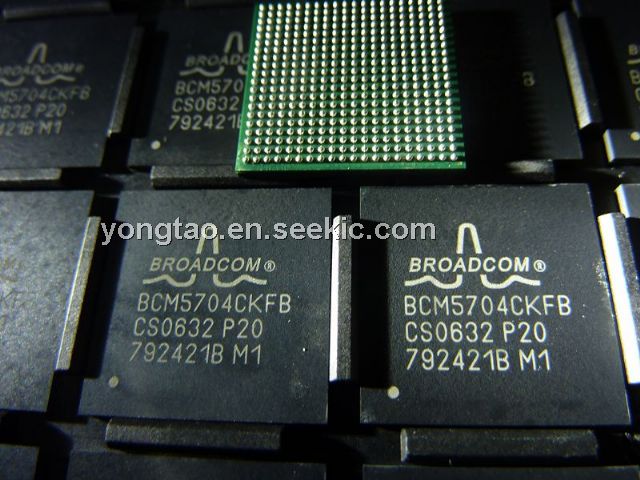

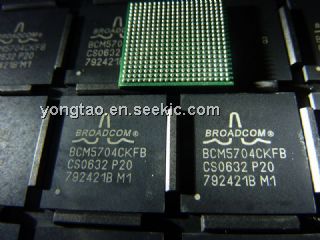

Product Summary

The BCM5704C is a fully integrated dual-port, 10/100/1000BASE-T
Gigabit Ethernet media access control and physical layer transceiver
solution for high-performance network applications. The BCM5704C is
a highly integrated solution combining two triple-speed, IEEE 802.3-
compliant media access control (MAC), PCI, and PCI-X bus interfaces,
an on-chip buffer memory, and an integrated physical layer transceiver
in a single device. The BCM5704C is fabricated in a low-voltage, 0.13-
μm CMOS process providing a low-power system solution. By itself the
BCM5704C provides a complete single-chip dual-port Gigabit Ethernet
NIC or LoM solution.

Parametrics

BCM5704C Datasheet (PDF) - Broadcom Corporation. - DUAL 10/100/1000BASE-T CONTROLLER WITH INTEGRATED TRANSCEIVER

Features

- PCI v2.2 32/64-bit, 33/66 MHz
- PCI-X v1.0 64-bit, 66/100/133 MHz
