Product Summary

The CH7012 is a display controller device which
accepts a digital graphics input signal, and encodes and
transmits data to a TV output (analog composite, svideo
or RGB). The device accepts data over one 12-bit
wide variable voltage data port which supports five
different data formats including RGB and YCrCb.

Parametrics

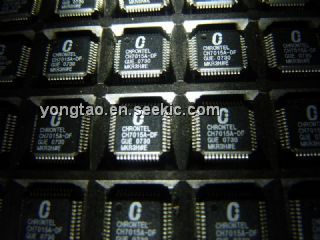

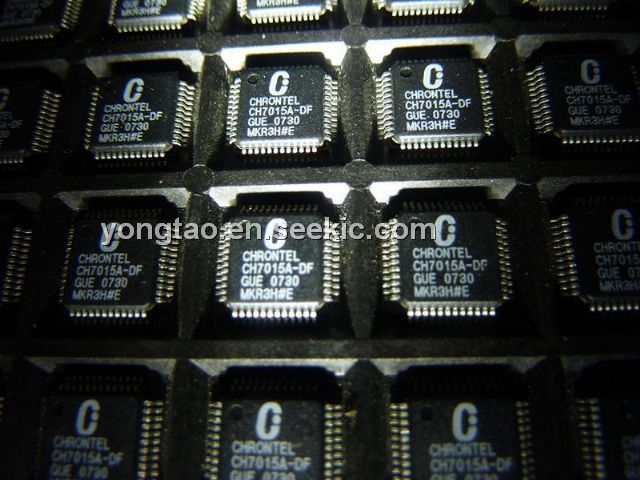

List of Unclassifed Manufacturers - Chrontel CH7015 TV Output Device

Features

Features
? TV output supporting up to 1024x768 graphics
resolutions
? Programmable digital interface supports RGB and
YCrCb
? TrueScaleTM rendering engine supports underscan in
all TV output resolutions
? Enhanced text sharpness and adaptive flicker
removal with up to 7 lines of filtering
? Support for all NTSC and PAL formats
? Provides CVBS, S-Video and SCART (RGB) outputs
? TV connection detect
? Programmable power management
? 10-bit video DAC outputs
? Fully programmable through serial port
? Complete Windows and DOS driver support
? Low voltage interface support to graphics device
? Offered in a 64-pin LQFP package
