Product Summary
? RF input: 950 to 2150 MHz
? Input power range: -20 to -81 dBm
? Noise figure: 10 dB, typical
? Input IP3 at minimum gain: 10 dBm, typical
? I/Q phase difference: ±3 degrees, typical
? I/Q amplitude difference: ±1.5 dB, typical
? Filter tune range: 0.5 to 30 MHz
? Output voltage, RL≥1kΩ: 0.5 Vp-p
? Typical junction temperature: 90° C at room temperature
? Operating temperature range: 0° to 70° C

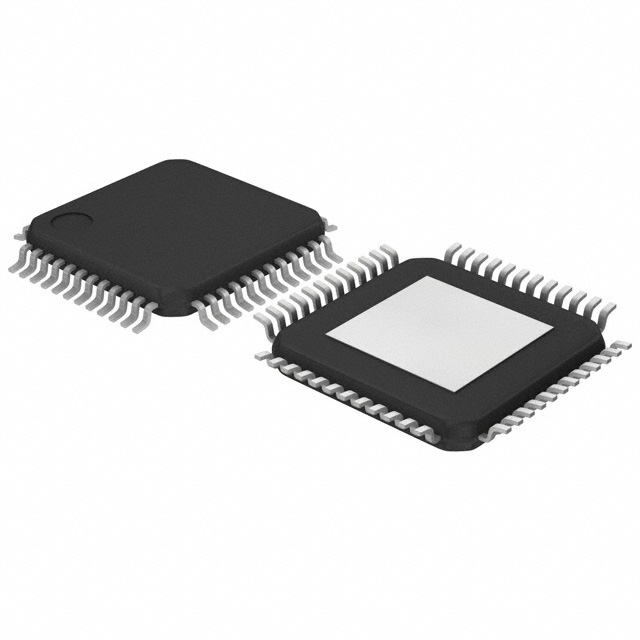

? Package type: 48-pin ETQFP
Parametrics
Conexant Systems, Inc - Digital Satellite Tuner
Features
?DVB/DSS/DCII – compliant
?Single-chip RF-to-baseband
satellite receiver
?Zero-IF architecture eliminates
the need for image-reject filtering
?Variable baseband filters for optimal
interference rejection
?Integrated LNA and LO with onboard VCO and synthesizer
?Single +5V supply
?48-pin ETQFP
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

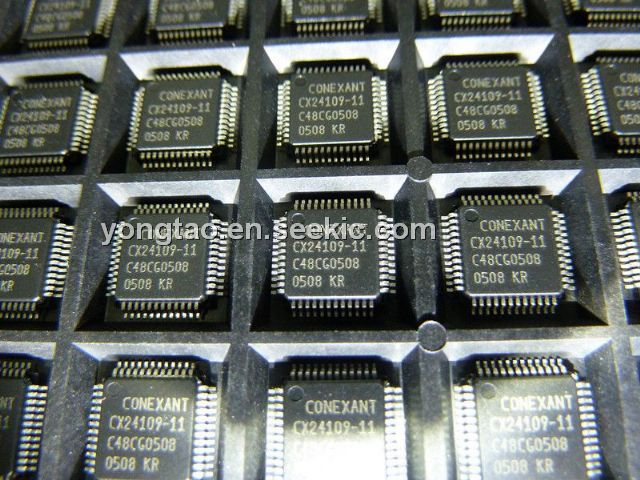

 CX24109-11 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
CX24109-11Z |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
CX24109-11Z,518 |
NXP Semiconductors |
Tuners IC SATELLITE TUNER DGTL |
Data Sheet |
Negotiable |
|
||||
|
CX24109-11Z,557 |
NXP Semiconductors |
Tuners IC SATELLITE TUNER DGTL |
Data Sheet |
Negotiable |
|
||||
