Product Summary

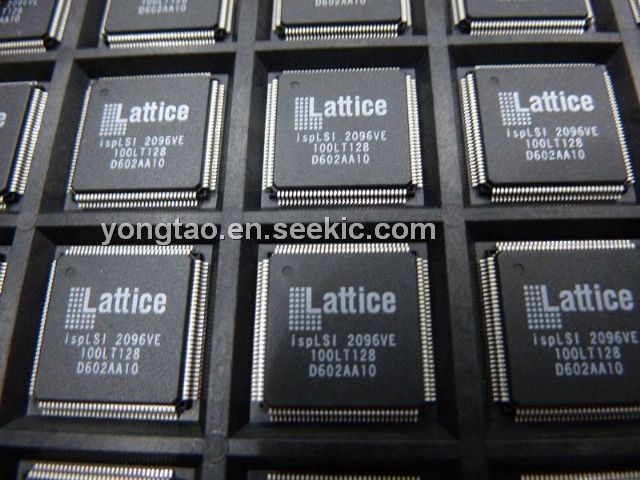

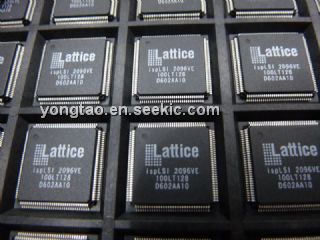

The ispLSI 2096VE is a High Density Programmable
Logic Device containing 96 Registers, six Dedicated
Input pins, three Dedicated Clock Input pins, two dedicated Global OE input pins and a Global Routing  Pool
(GRP).  The GRP provides complete interconnectivity
between all of these elements.  The ispLSI 2096VE
features in-system programmability through the Boundary Scan Test Access Port (TAP) and is 100% IEEE
1149.1 Boundary Scan Testable.  The ispLSI 2096VE
offers non-volatile reprogrammability of the logic, as well
as the interconnect to provide truly reconfigurable systems.

Parametrics

Supply Voltage Vcc
.................................. -0.5 to +5.4V
Input Voltage Applied............................... -0.5 to +5.6V
Off-State Output Voltage Applied ............ -0.5 to +5.6V
Storage Temperature................................ -65 to 150°C
Case Temp. with Power Applied .............. -55 to 125°C
Max. Junction Temp. (TJ
) with Power Applied ... 150°C

Features

— 4000 PLD Gates
— 96 I/O Pins, Six Dedicated Inputs
— 96 Registers
— High Speed Global Interconnect
— Wide Input Gating for Fast Counters, State
Machines, Address Decoders, etc.
— Small Logic Block Size for Random Logic
— 100% Functional, JEDEC and Pinout Compatible
with ispLSI 2096V Devices
— Pinout Compatible with ispL
