Product Summary
The M29W800D is a 8 Mbit (1Mb x8 or 512Kb x16)
non-volatile memory that can be read, erased and
reprogrammed. These operations can be performed using a single low voltage (2.7 to 3.6V)
supply. On power-up the memory defaults to its
Read mode where it can be read in the same way
as a ROM or EPROM.
Parametrics
ELECTRONIC SIGNATURE
– Manufacturer Code: 0020h
– Top Device Code M29W800DT: 22D7h
– Bottom Device Code M29W800DB:
225Bh
Features
■ SUPPLY VOLTAGE
– VCC = 2.7V to 3.6V for Program, Erase
and Read
■ ACCESS TIMES: 45, 70, 90ns
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M29W800DB |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
M29W800DB45N6E |
STMicroelectronics |
Flash 8 MBIT (1MB) 3V SUPPLY |
Data Sheet |
Negotiable |
|
||||
|
M29W800DB45N6F |
STMicroelectronics |
Flash STD FLASH |
Data Sheet |
Negotiable |
|
||||
|
M29W800DB45ZE6F |
STMicroelectronics |
Flash STD FLASH |
Data Sheet |
Negotiable |
|
||||
|
M29W800DB45ZE6E |
STMicroelectronics |
Flash 8 MBIT (1MB) 3V SUPPLY |
Data Sheet |
Negotiable |
|
||||
|
M29W800DB70M6 |
STMicroelectronics |
Flash 1Mx8 or 512Kx16 70ns |
Data Sheet |
Negotiable |
|
||||
|
M29W800DB70N6F |
STMicroelectronics |
Flash STD FLASH 8 MEG |
Data Sheet |
Negotiable |
|
||||
|

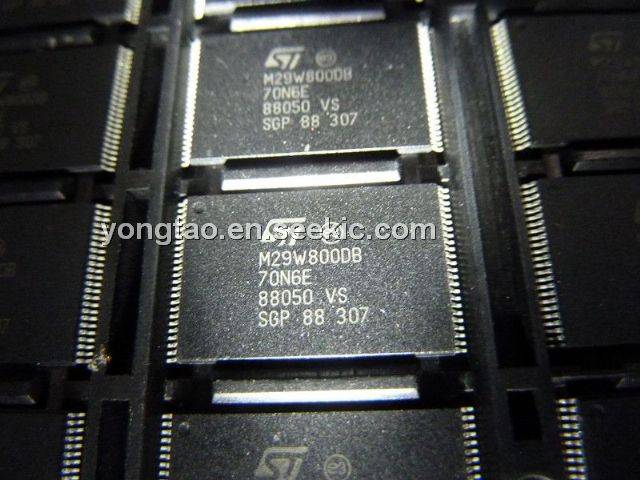

M29W800DB70N6E |
STMicroelectronics |
Flash 1Mx8 or 512Kx16 70ns |
Data Sheet |
Negotiable |
|
||||
