Product Summary

The MX26LV004T/B is a 4-mega bit Flash memory organized as 512K bytes of 8 bits.  MXIC's Flash memories
offer the most cost-effective and reliable read/write nonvolatile random access memory.  The MX26LV004T/B is
packaged in 40-pin TSOP.  It is designed to be reprogrammed and erased in system or in standard EPROM
programmers.

Parametrics

MX26LV004BTC-55  TSOP40  MXIC

Features

? Extended single - supply voltage range 3.0V to 3.6V
? 524,288 x 8
? Single power supply operation
- 3.0V only operation for read, erase and program
operation
? Fast access time: 55/70ns
? Low power consumption
- 30mA maximum active current
- 30uA typical standby current
? Command register architecture
- Byte Programming (55us typical)
- Sector Erase (Sector structure 16K-Byte x1,
8K-Byte x2, 32K-Byte x1, and 64K-Byte x7)
? Auto Erase (chip & sector) and Auto Program
- Automatically erase any combination of sectors with
Erase Suspend capability.
- Automatically program and verify data at specified
address

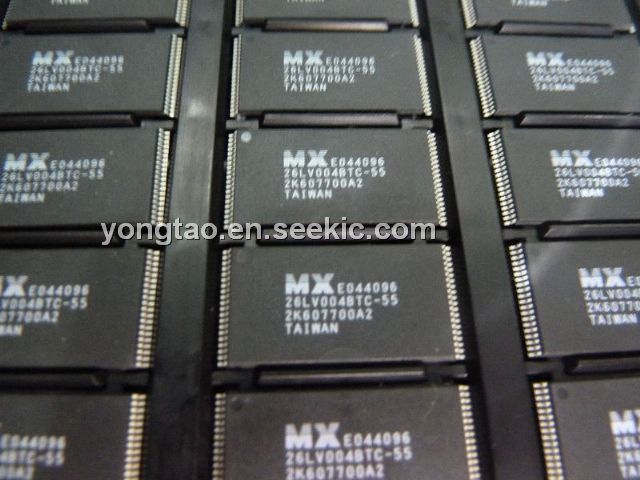

Diagrams

MX26LV004BTC-55  TSOP40  MXIC
