Product Summary

GENERAL DESCRIPTION
The MX26LV160 is a 16-mega bit high speed Flash
memory organized as 2M bytes of 8 bits or 1M words of
16 bits.  MXIC's high speed Flash memories offer the
most cost-effective and reliable read/write non-volatile
random access memory.  The MX26LV160 is packaged
in 44-pin SOP, 48-pin TSOP, and 48-ball CSP.  It is designed to be reprogrammed and erased in system or in
standard EPROM programmers.

Parametrics

MX26LV160BTC-55  TSOP48  MXIC

Features

FEATURES
? Extended single - supply voltage range 3.0V to 3.6V
? 2,097,152 x 8 / 1,048,576 x 16 switchable
? Single power supply operation
- 3.0V only operation for read, erase and program
operation
? Fast access time: 55/70ns
? Low power consumption
- 30mA maximum active current
- 30uA typical standby current
? Command register architecture
- Byte/word Programming (55us/70us typical)
- Sector Erase (Sector structure 16K-Bytex1,
8K-Bytex2, 32K-Bytex1, and 64K-Byte x31)
? Auto Erase (chip & sector) and Auto Program
- Automatically erase any combination of sectors with
Erase verify capability.
- Automatically program and verify data at specified
address

Diagrams

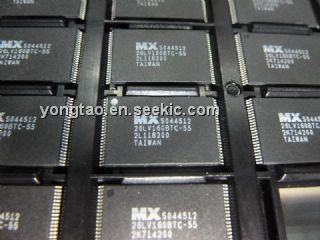

MX26LV160BTC-55  TSOP48  MXIC
