Product Summary

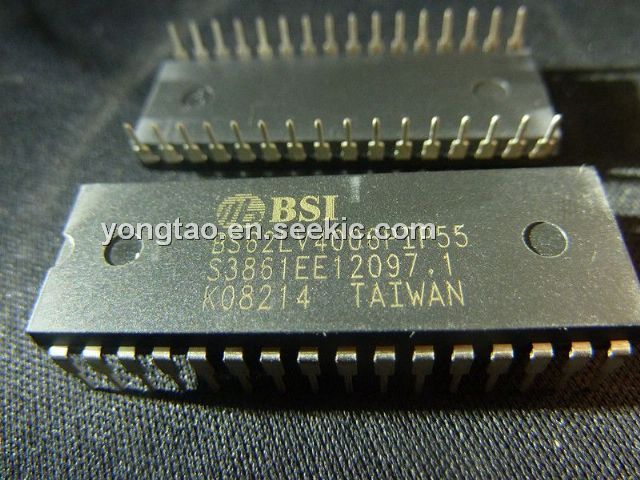

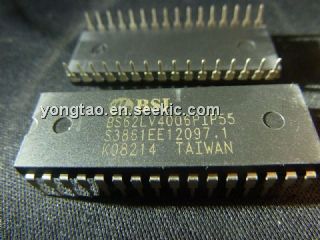

The BS62LV4006 is a high performance, very low power CMOS
Static Random Access Memory organized as 524,288 words by 8 bits
and operates from a wide range of 2.4V to 5.5V supply voltage.
Advanced CMOS technology and circuit techniques provide both high
speed and low power features with a typical CMOS standby current of
0.45uA at 3.0V/25oC and maximum access time of 55ns at 3.0V/85oC.
Easy memory expansion is provided by an active LOW chip enable
(CE) , and active LOW output enable (OE) and three-state output
drivers.

Parametrics

Brilliance Semiconductor - Very Low Power/Voltage CMOS SRAM 512K X 8 bit

Features

Wide Vcc operation voltage : 2.4V ~ 5.5V
? Very low power consumption :
Vcc = 3.0V C-grade: 29mA (@55ns) operating current
I -grade: 30mA (@55ns) operating current
C-grade: 24mA (@70ns) operating current
I -grade: 25mA (@70ns) operating current
0.45uA (Typ.) CMOS standby current
Vcc = 5.0V C-grade: 68mA (@55ns) operating current
I -grade: 70mA (@55ns) operating current
C-grade: 58mA (@70ns) operating current
I -grade: 60mA (@70ns) operating current
2.0uA (Typ.) CMOS standby current

Diagrams
