Product Summary
The AD680 is a bandgap voltage reference which provides a fixed 2.5 V output from inputs between 4.5 V and 36 V. The
architecture of the AD680 enables the reference to be operated at a very low quiescent current while still realizing excellent dc characteristics and noise performance. Trimming of the high stability thin-film resistors is performed for initial accuracy and temperature coefficient, resulting in low errors over temperature.
Parametrics
Features
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

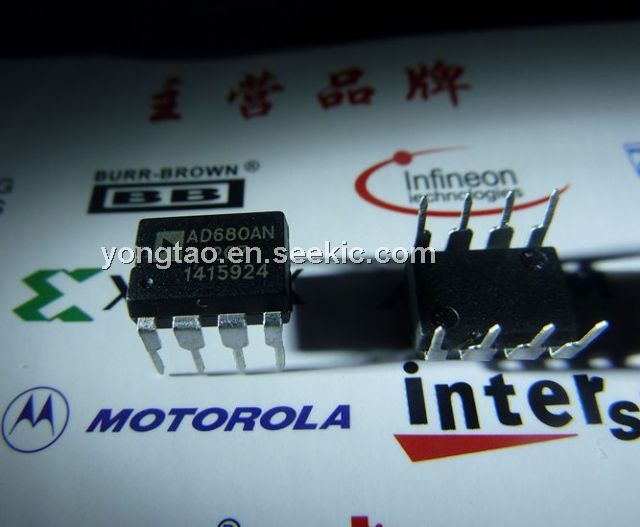

 AD680AN |
Analog Devices Inc |
IC V-REF 2.5V LP 8-DIP |
Data Sheet |
|
|
||||||||||||||||||||
 |
AD680ANZ |
|
IC VREF SERIES PREC 2.5V 8-PDIP |
Data Sheet |
|
|
||||||||||||||||||||
